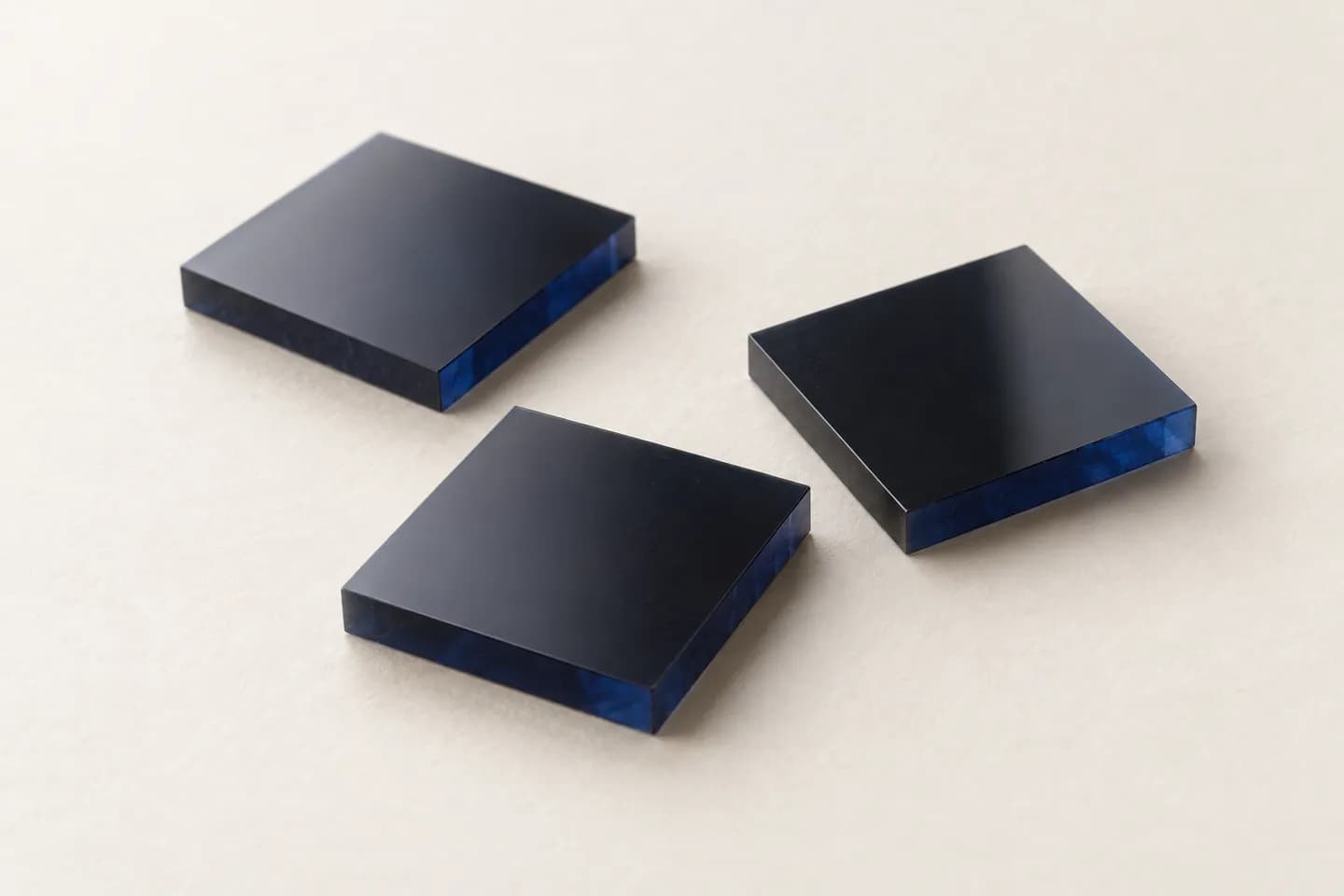

Boron-Doped Diamond

When your design needs diamond that conducts, boron changes its electrical behaviour.

Good to know

Doping level and resistivity are related but are not interchangeable specifications.
A doped plate is a material; an electrode also needs contacts and an exposed working surface.

What we define for boron-doped diamond, with units and how each is typically measured. We confirm values for your application in technical review.

Parameter	Unit	Typical test method
Thickness and tolerance (bulk or layer)	mm	Micrometer or optical gauge
Lateral size, outline or diameter, and tolerance	mm	Optical measurement
Edge condition and chip limit		Microscopy inspection to drawing

Parameter	Unit	Typical test method
Boron concentration and doping (layer or bulk)	cm⁻³	SIMS or capacitance–voltage
Dopant uniformity across the area	%	SIMS or Raman mapping
Non-diamond carbon content		Raman spectroscopy
Inclusions, growth sectors and defects		Cross-polarised microscopy or birefringence imaging
Crystal type, grade and grain size		Raman spectroscopy or microscopy

Parameter	Unit	Typical test method
Surface finish condition (as-grown, lapped or polished)		Visual inspection to drawing
Surface roughness per side	nm Ra	Profilometry or AFM

Parameter	Unit	Typical test method
Electrical resistivity and test conditions	Ω·cm	Four-point probe
Carrier concentration and mobility	cm⁻³	Hall-effect measurement

Parameter	Unit	Typical test method
Certificate of conformance and traceability		Supplier declaration
Packaging, cleanliness and labelling		Per drawing

Requirement to review

Share your boron-doped diamond requirement, dimensions and drawing for review.
